vent window repair

Marine glass is still doing replacement. Just did by 265 vent window. Not cheap, but it is exact.

DennisG01 said:
Very nice! Can't argue with the cost, either!

Just out of curiosity, I've heard local glass shops can cut flat glass relatively inexpensive. But I wonder how that price changes when using safety glass?

Want a buy a new tool? Get yourself a "step" drill bit. They are WONDERFUL for drilling into thin metal or things like what you did. They even deburr the edges for you!
Click to expand...
I replaced one of my vent windows with safety glass 2 years ago and it was $150

Original windows are "school bus glass". Regular glass (not tempered) with plastic sheet in-between. Difficult to drill the hole for the pull so close to the edge. Acrylic (best choice) or Lexan polycarbonate is easy/cheap way to go. Use black silicone or maybe black 5200.

Tempering results in a harder glass. It has to be done in an expensive machine that only large glass manufacturing plants can afford. Smaller shops have to send it out. Problem is most shops don't want to be bothered with small jobs.

I patterned mine and sent them out to Peninsula Glass in Vancouver, WA for tempered glass. There was a minimum and a little pricey but it is the best choice. Only a little more to have 3 made - $46.60 each - have one left. This was in 2009.

peninsulaglass.com

Peninsula Glass Company - Custom Glass Made With Quality

Peninsula Glass Company is your premier custom glass manufcaturer. We pride ourselves on providing high-quality craftsmanship and service. Call us today!
peninsulaglass.com peninsulaglass.com

Vent Window.png

Last edited:
I'm glad I made this post because my brother just shattered the starboard side vent window. Luckily I still have the hinge and the T pull. The latch fell overboard.:confused:

Last edited:
Mine was missing the T handle on one side when I bought the boat. Just a piece of plastic in there now. Would like to add the handle again to be able to open it. Have you sourced one of those before?

Saltyone said:
Mine was missing the T handle on one side when I bought the boat. Just a piece of plastic in there now. Would like to add the handle again to be able to open it. Have you sourced one of those before?
Click to expand...
The T handle is part #30-179 and the D handle is # 30-329. I think that I have an old T handle part around here somewhere that I could probably sell you if interested.

SkunkBoat said:
They shattered into a billion pieces so there is no plastic sheet between.
Click to expand...
My originals cracked and had the laminate in between. Local glass guy had the material but wouldn't drill the hole because it was too close to the edge.

I see another thread going where his window did explode into a billion pieces. That one is clearly tempered.

I'm going to try this in place of the D handle. $4.50 on amazon

Sea Dog 324140-1 Windshield Latch (Single Wing 1-9/16" L x 13/16" H x 5/16" Tab Lift),1 Pack​

Screen Shot 2023-07-10 at 10.36.17 AM.png

SkunkBoat said:
I'm going to try this in place of the D handle. $4.50 on amazon

Sea Dog 324140-1 Windshield Latch (Single Wing 1-9/16" L x 13/16" H x 5/16" Tab Lift),1 Pack​

View attachment 30459
Click to expand...


This was not useable. Height ok but not long enough. I can't find an OEM "D" latch.

Window is back in without a latch for now. I can frankenstein one with a 1/4-20 bolt and piece of starboard but I'm going to think on it a while...

Last edited:
Skunk, did you try the dealer? They should be able to get one.
D handle is # 30-329.

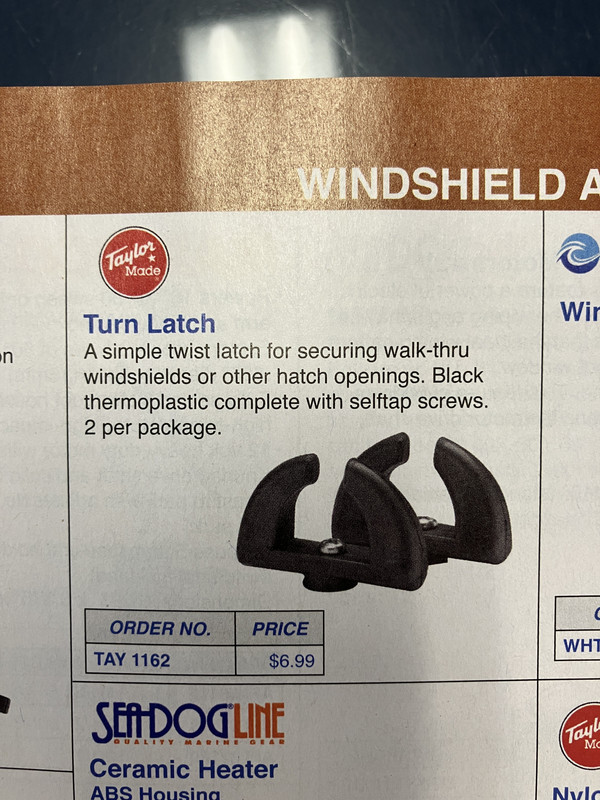

Is this it?
